Product Parameters
|
Truck Specification |
|
|

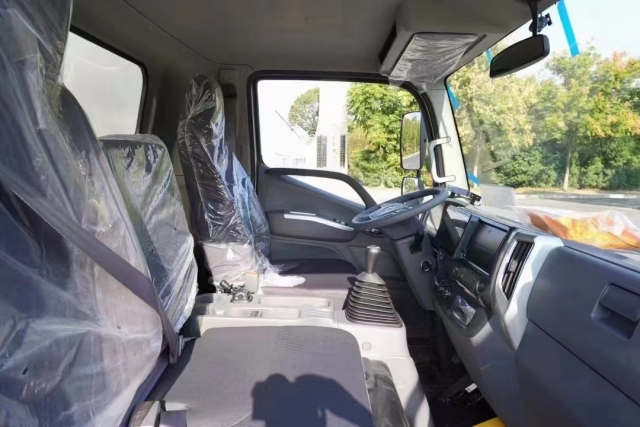

Cab |
Single row cab, with power steering. Electronic flameout |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
100Km/h |
|
Overall dimension(mm) |
5995*2320*3265 |
|
GVW( kg) |
4495 |
|
Wheelbase(mm) |
3360 |
|
Tire |
7.00R16LT |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Gear box |
6-speed |
|
Enging |
|
|
Fuel Type |
Diesel |
|
Type |
Straight line four cylinder turbocharging |
|
Exhaust(ml) |
2780mL |
|
Max output power/rotate speed (hp /rpm ) |
156HP/115kw |
|
Braking system |
|
|
Service Brake |
Spring energy |
|
Park Brake |
parking brake |
|
Auxiliary brake |
24v |
|
Upper-Body specification |
|
|
Material of van box |
In the middle of Polyurethenefoam, Inner and coating is glass fiber |
|
Thickness of van box (mm) |
80mm Polyurethene foam |
|
Model of Refrigeration unit |
Korean ND THERMO brand Type:DT-150 |
|
Van box dimension(mm) |
4085*2100*2100 |
|
Length of van (m) |
5-6 |
|
Capacity of van (m³) |
14m³ |
|
Voltage & Total Current |
DC12V(20A) |
|
Power |
240W |
|
Mini temperature in van (ºC) |
-18(suitable for transfer food ) |
