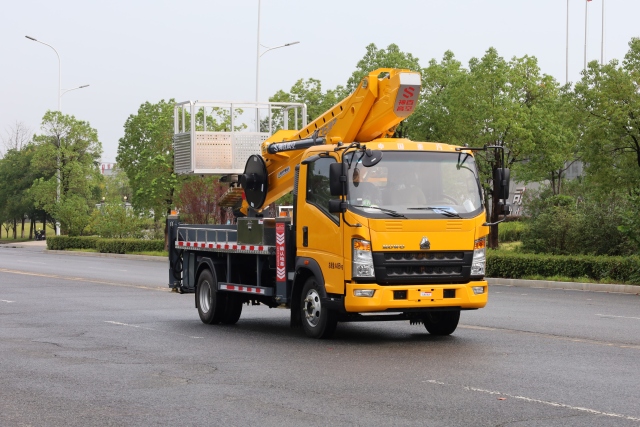

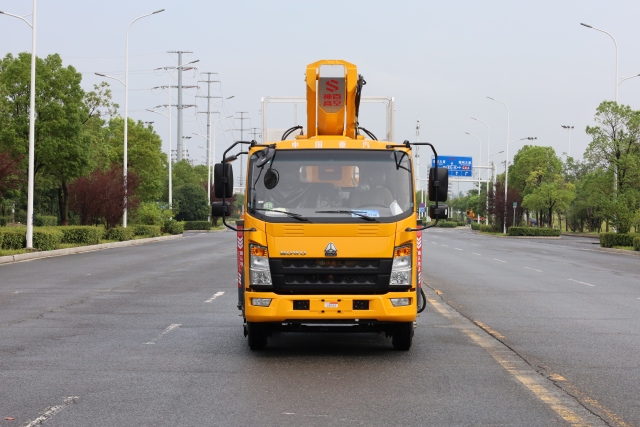

High-altitude work vehicle

Mobile aerial work platform refers to a vehicle with a height of more than 3 meters, which is dominated by multiple hydraulic cylinders through hydraulic or electric systems, can be lifted up and down for operation. The manned aerial work platform with hydraulic transmission is a kind of advanced species machinery and equipment in contemporary times. Construction workers can work the air with the help of aerial work platforms, and safety can be guaranteed as long as they are used correctly. However, if the operation is improper or the safety measures are not, it is also a very dangerous main air operation procedure, and the following code of conduct is formulated.
  • High-altitude work vehicle
  • High-altitude work vehicle
  • High-altitude work vehicle
  • High-altitude work vehicle

Description

General Vehicle model ABC5047JGKZZ6
Chassis brand HOWO
Overall dimensions (mm) 5995mm*2200mm*3100mm
Gross weight (kg) 4495
Chassis Driver's seat 3
Drive type 4*2 left hand drive
Fuel type Diesel
Engine model WP2.3Q140E62
Engine Brand Weichai
Power (kW/hp) 102/140
Emission standards Euro 4/5
Wheelbase (mm) 3280mm
Tire specifications 700R16LT10R
Color Customer's request
Upper body configuration Platform Working Height 30.8meters
Maximum working radius 17meters
Boom type Multi-section arm design (7 sections, 6 sections synchronous telescopic), lifting height 30.8 meters
Outrigger 4 pcs, Lateral span of outrigger 5770/6120mm
Bucket 1800×700×1000mm(LWH),       200kg load
Slewing device Two-way 360° continuous slewing, 360°slewing basket
Operating system Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating
Emergency device Yes
