| General | Vehicle model | ABC5046JGKCA6 |
| Chassis brand | FAW VN | |
| Overall dimensions (mm) | 5998x2200x3450mm | |
| Gross weight (kg) | 4495 | |
| Chassis | Driver's seat | 3 |
| Drive type | 4*2 left hand drive | |
| Fuel type | Diesel | |
| Engine model | 490PLUS150 | |
| Engine Brand | Yunnei | |
| Power (kW/hp) | 107/145 | |
| Emission standards | Euro 4/5 | |
| Wheelbase (mm) | 3300 | |
| Tire specifications | 7.00R16 8PR | |
| Color | Customer's request | |
| Upper body configuration | Platform Working Height | 20meters |

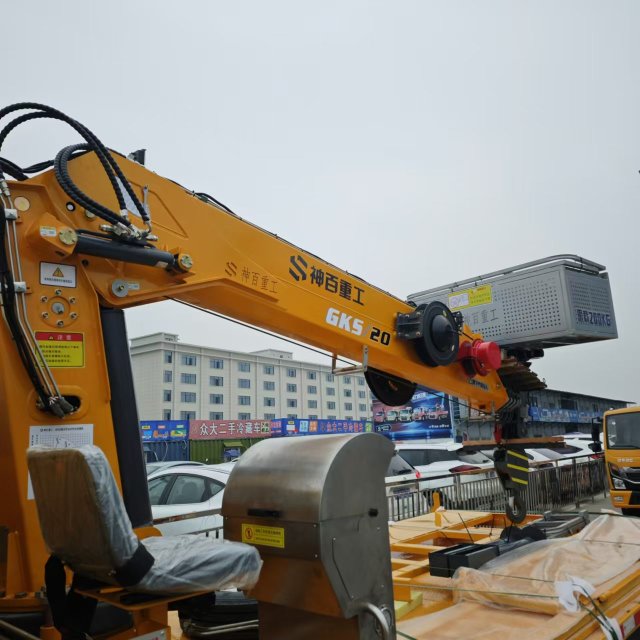

| Boom type | Four-section 14 sided arms, synchronous telescopic | |
| Outrigger | 4 pcs, Lateral span of outrigger 5150/4500mm, longitudinal span of front and rear outrigger 3400. | |
| Bucket | 1400×700×1000mm(LWH), 200kg load | |
| Slewing device | Two-way 360° continuous slewing, 360°slewing basket | |
| Operating system | Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating | |
| Emergency device | Yes |
