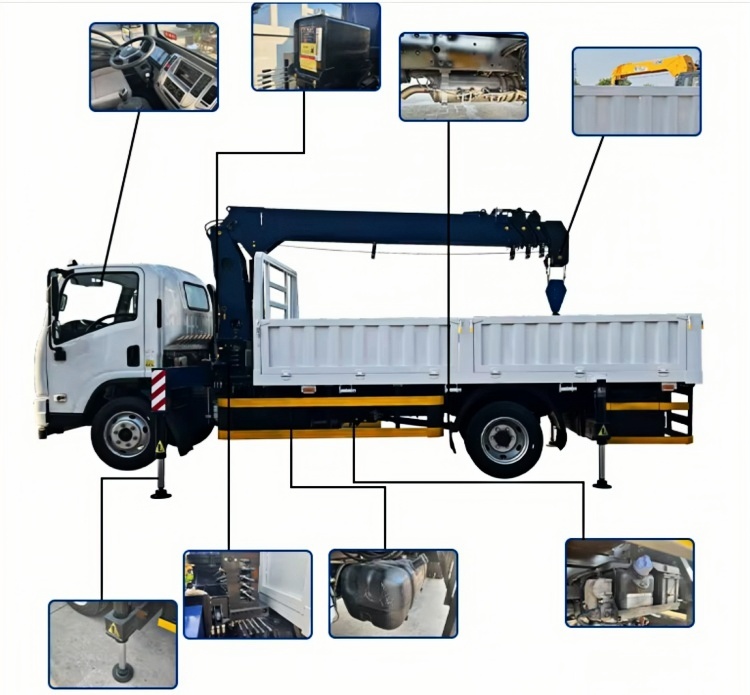

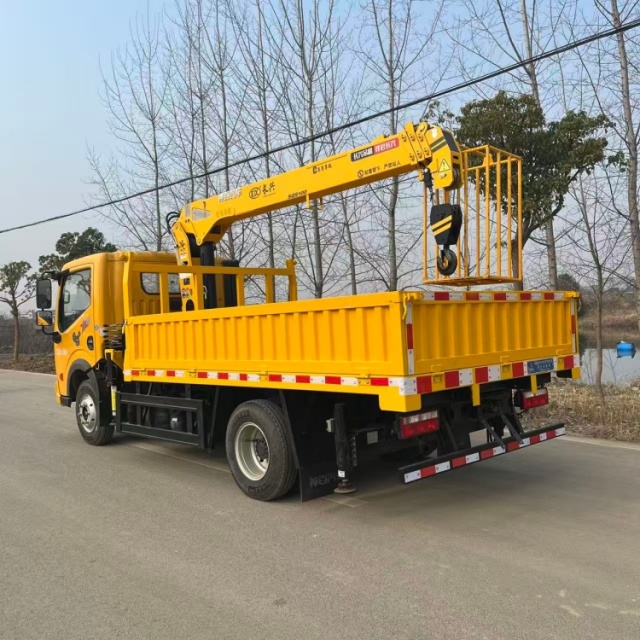

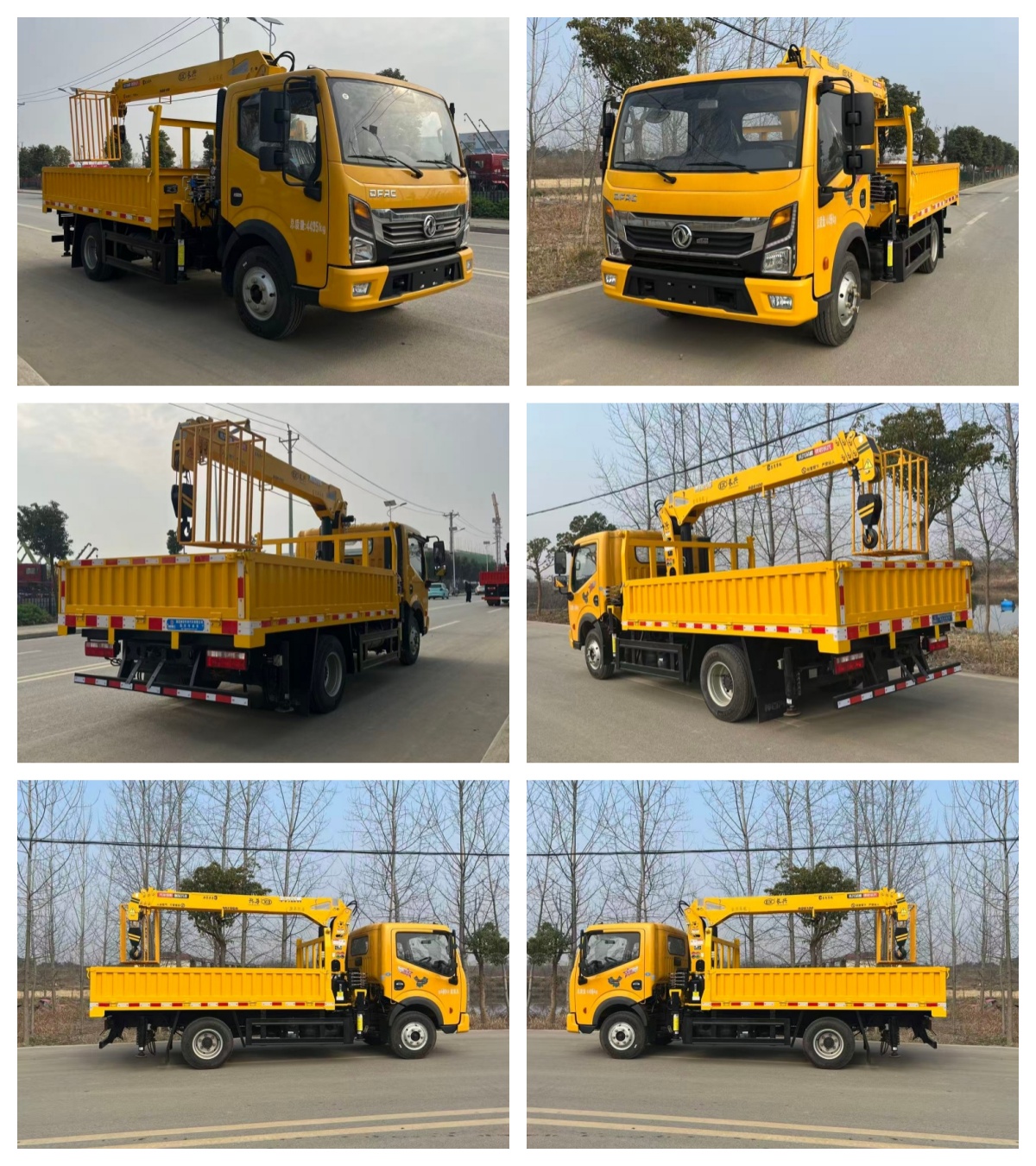

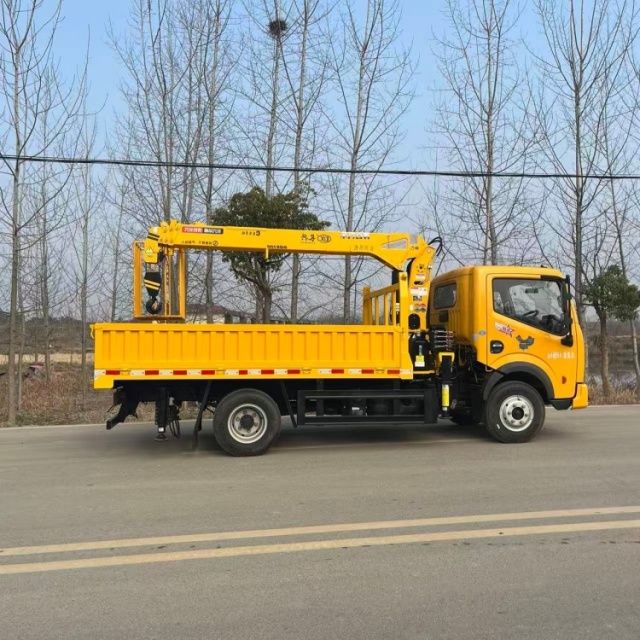

It is a transport truck combined with a truck-mounted crane and a chassis. It consists of a lifting arm, a turntable, a frame, outriggers and other components. Its mechanical movements are realized through the operations of luffing, telescoping, slewing, hoisting and other mechanisms, and lifting operations are completed by combining different movements.
|
Vehicle technical parameters |
|
|
Product Name |
vehicle-mounted crane |
|
Total Weight (kg) |
4495 |
|
Kerb weight (Kg) |
3600 |
|
Suitable crane (kg) |
4000 |
|
Lifting height (m) |
11 |
|
Spinner |
360° |
|
Maximum allowed personnel |
3 |
|
Overall size (mm) |
5995×2200×3200 |
|
Cargo box dimensions (mm) |
3300×2000×500 |
|
Working radius (m) |
7.2 |
|
Operation Mode |
Manual/Remote Control |
|
Chassis Technical Parameters |
|
|
Brand Name |
DFL |
|
Fuel type |
Diesel |
|
Number of axes |
2 |
|
Number of tires |
6+1（Spare tire） |
|
Brake |
Air brake |
|
Engine power (kW) |
85 |
|
Gearbox |
5gear |
|
Wheelbase (mm) |
3308 |
|
Tire size |
7.00R16LT |
Widely applicable to hoisting and transportation of municipal construction, coal mine projects, landscaping, infrastructure materials and other equipment
Reliable production quality, long service life and fast working speed
