Chassis
|
Chassis brand |
DFL |
|
Overall dimensions (mm) |
11800×2550×3980 |
|
|
Gross weight (kg) |
4495 |
|
|
Driver's seat |
2 |
|
|
Drive type |
4*2 |
|
|
Fuel type |
Diesel |
|
|
Engine Brand |
Yuchai |
|
|
Power (kW/hp) |
147/200 |
|
|
Emission standards |
Euro 6 |
|
|
Wheelbase (mm) |
3800 |
|
|
Tire specifications |
8.25R16 / 10.00R20 |
|
|
Color |
Customer's request |
|
|
Upper body configuration
|
Platform Working Height （m） |
20/22/25 |
|

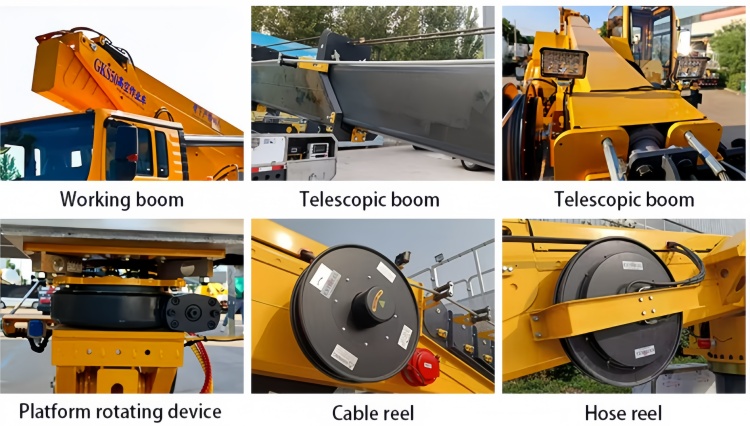

Boom type |
5 section boom (6 section synchronous telescopic) |
|
|
Outrigger |
4 pcs, Lateral span of outrigger 12000mm |
|
|
Bucket |
1800×700×1000mm(LWH), 200kg load |
|
|
Slewing device |
Two-way 360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating |
|
|
Emergency device |
Yes |
